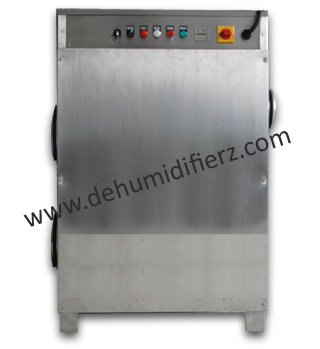

AIDR1200 Dehumidifier

Make – Advance

Model

AIDR1200

Dehumidifying capacity(20°C,60%)

8.5kg/h(204L/D)

Process air flow

1250m3/h(735CFM)

Reactivation air flow

450m3/h
(264CFM)

Applied Temperature

-20°C-70°C

Max power

13KW

Power rating

11KW

Voltage

380V

Current

22A

Weight

120KG

Dimension

950X690X1260mm

Applying space

130-170m2

Quality/Safety Approval

ISO/GS/CE/ROHS/EMC

Features:

  • Accurate camputer contral system
  • Timer function
  • Proflute Rotor, imported from Sweeden, washable
  • Delaytime protection circuit
  • Silence, economical, saving, and easy operation
  • Fault locator system
  • Cleanable air filters helps improve the quality of air being circulated through the system at the processing air entrance&reactivation air entrance
  • Easy installation and checking
  • CNC machining structure process
  • Efficient absorption silica gel wheel
  • Control noise damping and shock absorption
  • Industrial flange for easy operation
  • Circuit breaker incorporated to minimize damage at high temperatures for electrical motor; heater and the drive wheel
  • Leakage protection safeguard for electrical motor; heater and the drive wheel
  • Unique seal design; Reduces air leakage
  • Dynamic balance design, ensures stable operation while moving
  • Able to operate in a wide range of temperatures from -20˚C + 50˚C heat
  • The design is in line with the requirements of IEC protection
  • Electrical design in accordance with international standards
Note:. The height of application are is 3 meter, the testing conditions in the lab is: ;T+20 deg C, RH 60%
